Page 44 - Case 2023 ENG
P. 44

42
                                                                                                    MINYON SERIES

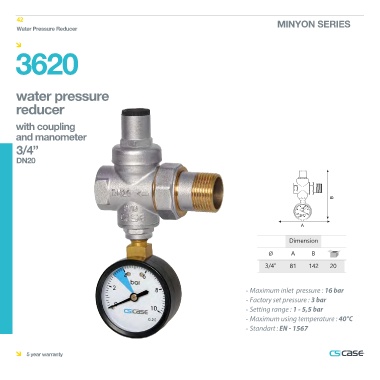

       Water Pressure Reducer




       3620






       water pressure

       reducer



       with coupling
       and manometer
       3/4”

       DN20







                                                                                                                        B




                                                                                                             A

                                                                                                         Dimension

                                                                                                 Ø       A       B

                                                                                                3/4"     81     142    20



                                                                                         • Maximum inlet  pressure : 16 bar
                                                                                         • Factory set pressure : 3 bar

                                                                                         • Setting range : 1 - 5,5 bar
                                                                                         • Maximum using temperature : 40°C
                                                                                         • Standart : EN - 1567





           5 year warranty
